Mccormick X6L Series

Call for Price

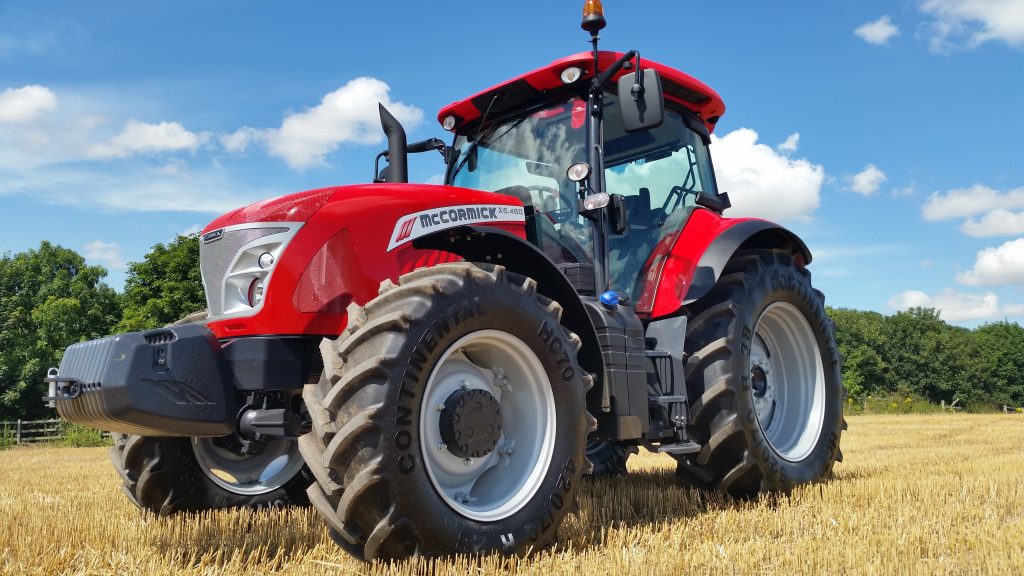

X6L Series Tractors

Developed to replace the popular G-Max range, the new X6L Series will be comprised of two models: the X6.460 and X6.470. The X6L Series is designed to be a simple, economical "workhorse" that can tackle tough jobs around the farm.  Driven by a BETAPOWER 16-valve, 4.5-liter clean-burning diesel engine delivering 163 horsepower, these tractors can perform in all kinds of field work, including heavy-duty applications. The tilt-up hood opens widely to provide easy access to the engine compartment for routine service and maintenance, and the coolers located in front of the radiator open fully from a single latch to provide easy cleaning in dusty conditions. With a large tank holding 71 gallons (270 liters) of diesel and 10 gallons (38 liters) of DEF, these fuel-efficient tractors offer longer run times between refueling stops. The X6L Series feature an 18-speed main gear box with power shuttle and three push-button high/med/low gears. The transmission can be optionally equipped with a creeper gearbox that delivers slow ground speeds for specialty applications. The open center hydraulic system delivers a flow rate of 23 gpm (87 lpm) to operate all hydraulic functions plus 10 gpm (38 lpm) for the steering circuit. The system offers up to five rear remote valves for implement connection  The X6L range is equipped with an electronically controlled Category 2/3 rear 3-point hitch with a maximum lift capacity of 15,430 lbs (7000 kg). Combining powerful performance with basic features and modern styling, the X6L Series offers a simple solution for farmers needing a strong tractor to do some heavy lifting around the homestead.

Betapower Engines with Advanced SCR Technology

ENGINE TYPE   BETAPOWER using Advanced SCR Technology
MAX ENGINE POWER AT 1900 RPM (ISO)     HP (kW)   163 / 120
RATED ENGINE POWER AT 2200 RPM (ISO)     HP (kW)   150 / 110
MAX. TORQUE AT 1500 RPM      lb ft (Nm)   497 (676)
BORE / STROKE     MM   104/132
DEF TANK CAPACTY     gal (L)   10 (38)
FUEL TANK CAPACITY     gal (L)   70.5 (270)
- standard

Reliable Power Shuttle Transmission

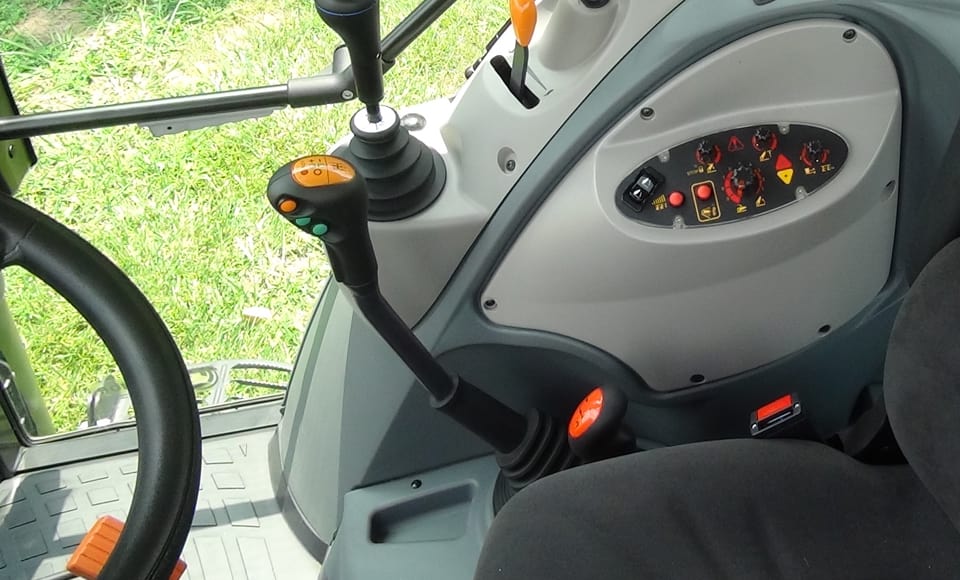

The X6L comes standard with a simple, reliable 18-speed gearbox featuring 6 synchronized gears and 3 ranges. A convenient left hand shuttle lever near the steering wheel operates the hydraulic power shuttle for easy direction changes without having to use the foot clutch pedal. An optional creeper gear set offers slow travel speeds with high RPM for specialty applications. An orange de-clutch button on the main gearshift lever allows the operator to shift gears and/or neutralize the transmission when pressed, providing simple and convenient operation. For even greater versatility, the transmission in the X6L Series offers 3 additional speeds as standard equipment (Hi/Med/Lo). Operated via simple push buttons in the main shift lever, the operator can easily shift through the synchronized gears in the forward direction without using the foot clutch, adding to the machine’s productivity.

Main Features
  • Cylinders : 4
  • Power : 163
  • Transmission : Power Shuttle
