Overview

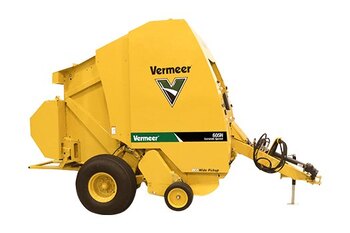

605N Baler

Like all Vermeer products, the new 605N Vermeer balers are built to last. With a sleek new design, these balers may look different, but what hasn’t changed is the high-performance and reliability they have to offer. Boasting durable, heavy-duty components and the ability to perform at a high capacity, the 605N Vermeer baler works hard to help you run smoothly and efficiently.

Features and Benefits

User-friendly durability abounds in the pickup! The optional pickup clutch automatically stops the pickup when desired bale size is reached lessening inadvertent overfill of the bale chamber and protecting the rollers, bearings and belts. Seals on either side of the pickup bushings keep dirt and dust out, also reducing wear and increasing the life of the pickup. Finally, tool-less gauge wheels make adjusting the pickup height easy.
The ISOBUS compatible, color touchscreen E-Link Pro Display offers enhanced usability, such as easily-accessible bale weight and moisture readings on the home screen with optional scale and/or moisture sensors. It also comes with the ability to keep track of information for up to 20 customers, with up to 10 fields per customer, electronically. Additionally, the E-Link Pro provides operators with feedback on the optional auto-lube greasing system and the pickup clutch control right in the tractor cab.
Controlled through the E-Link Pro display, the optional auto-lube greasing system provides operators automatic lubrication to critical bearings at user-defined intervals. This automatic system performs best with high-pressure Polyurea grease.
The dual-stage bale chamber offers increased starting speeds, tighter, more receptive bale starting and smoother, more trouble-free starts. This feature reduces the chamber by 50%, allowing the hay to turn quicker.
See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

Bale Size

Bale Diameter	72 "	182.9 cm
Bale Width	61 "	154.9 cm

Dimensions and Weights

Length - Standard	166 "	421.6 cm
Length (With Net)	195 "	495.3 cm
Length (With Ramp)	195 "	495.3 cm
Height	117 "	297.2 cm
Height - With Inline Ramp	129 "	327.7 cm
Width - Standard	114 "	289.6 cm
Width (With Flotation Tires)	129 "	327.7 cm
Width (With Standard Tires and Scale)	120 "	304.8 cm
Width (With Flotation Tires and Scale)	129 "	327.7 cm
Weight (Fully Optioned)	8600 lbs	3900.9 kg
Drawbar Weight	1650 lbs	748.4 kg

Bale Forming Chamber

Type of Chamber	Variable
Drive Roller Size	5.5 in. (14 cm)
Drum Roller Size	12 in. (30.5 cm) with 1.8 in. (4.5 cm) hex bearings
Idler Roller Size	3.5 "	8.9 cm
Start Roller Size	4.5 "	11.4 cm
Number of Plys	3-Ply mini rough top
Width of Belt	6.8 "	17.3 cm
Number of Belts	8
Type of Lace	Alligator Rivet
Length of Belt - Long	540 "	1371.6 cm
Length of Belt - Short	533 "	1353.8 cm
